Super-stable platform pedal made of fiberglass-reinforced composite plastic.
Maximum grip at a great price!
The CONTACT is an extremely durable platform pedal. The large platform with 10 spikes offers tremendous grip and a good connection between pedal and shoe. Whether you're an ambitious cyclist or a beginner on an eBike, the CONTACT pedal will improve your bike's handling.
CONTACT pedals feature a sealed plain bearing on the inside and a roller bearing on the outside. What's more, the pedal can be easily serviced.
The chamfered front of the pedal allows it to glide over obstacles and prevents dirt from accumulating in the pedal. In addition, the pedal has been tested for downhill use for riders up to 140 kg.

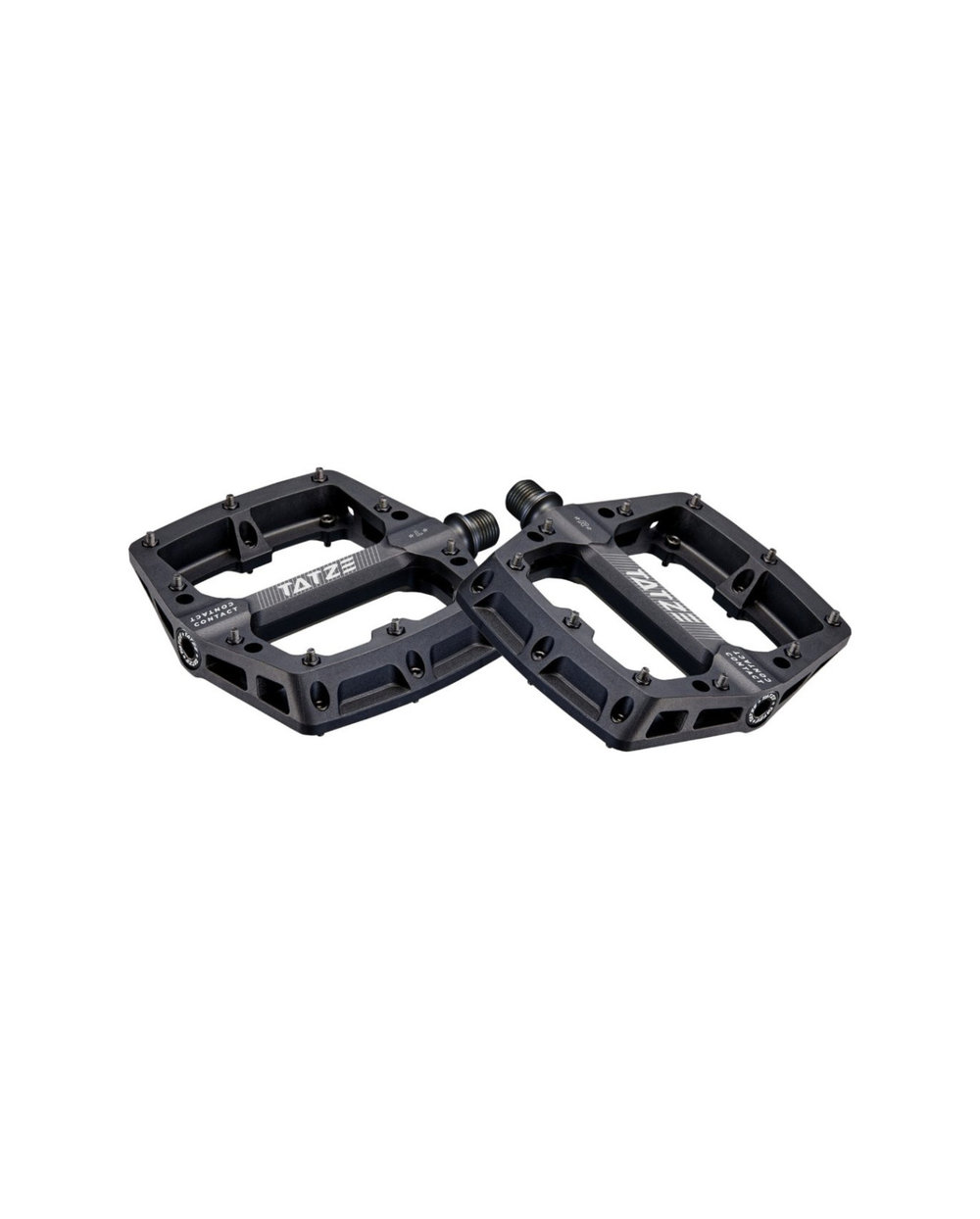

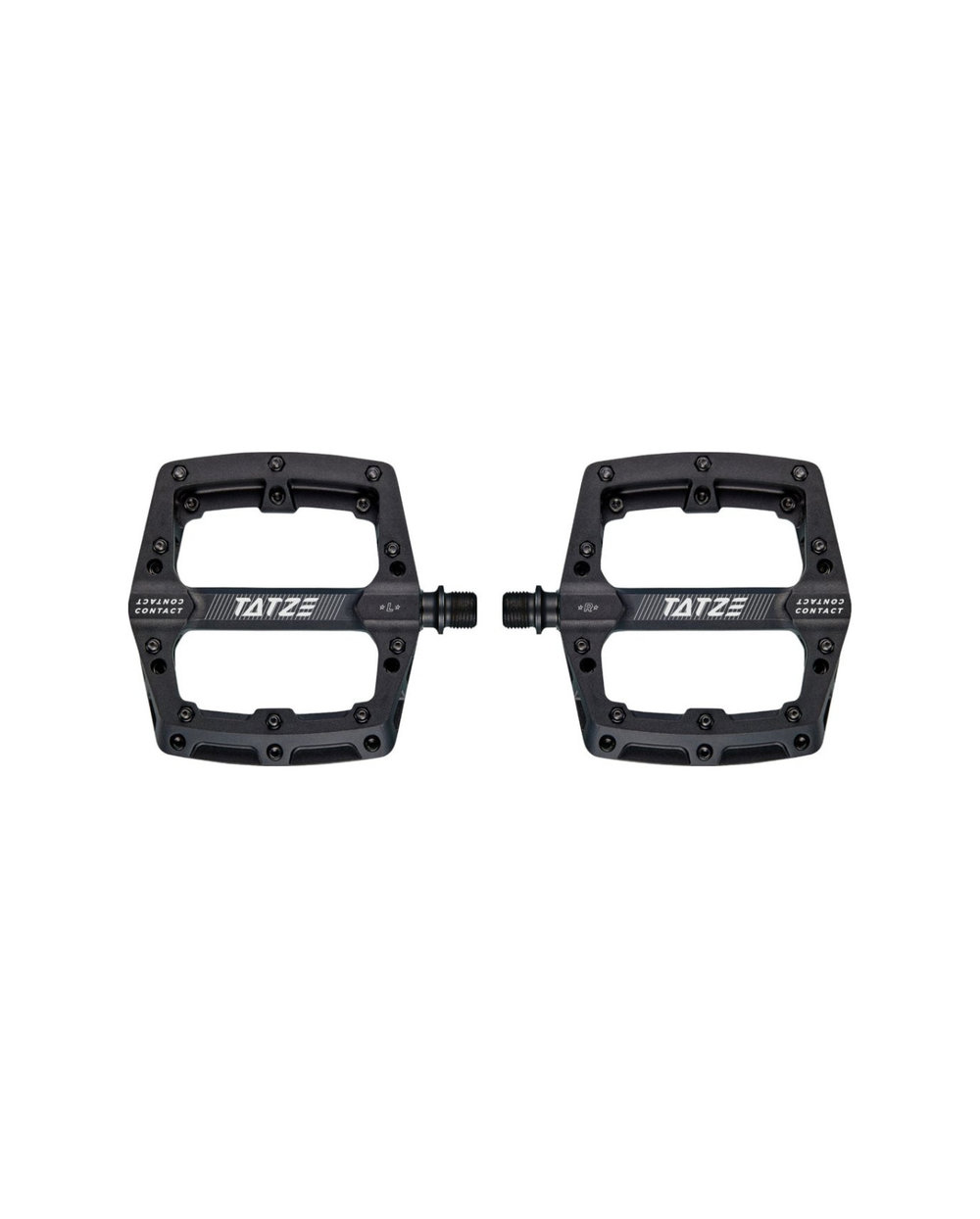

The Tatze Contact pedal impresses with its weight of just 359 g and dimensions of 105 x 105 mm.
Specifications at a glance:
- Wide, concave platform with 10 spikes .
- Fiberglass-reinforced composite plastic pedal body .
- Steel cleat with durable finish Ball bearings + deep-groove ball bearings.
- Sleeve bearings + ball bearings .
- Weight: 359 g
A) Connecting the pedals to the crank .
Right pedal connects clockwise, left pedal anticlockwise.
1) Lightly apply lubricant to the pedal threads.
2) Connect the threaded tab to the crank and tighten the pedal to a torque of 33 Nm using a 6 mm Allen key.
